The Role and Applications of Studding Outlet Flanges in Industries

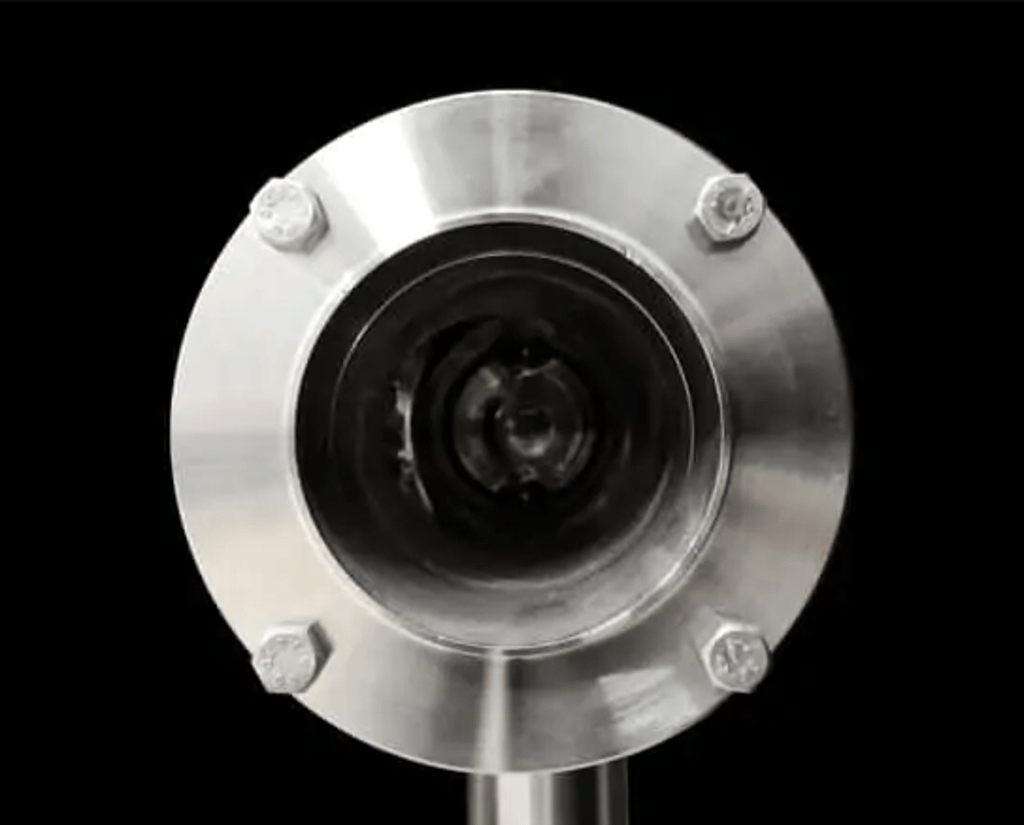

Image source: Texas Flange

Studding Outlet Flanges are specialized components used to connect pipes in various industrial applications. They offer unique advantages and are available in different types, sizes, and materials. Let's explore what they are and their key characteristics.

Understanding Studding Outlet Flanges

Studding Outlet Flanges, also known as "pad flanges," are fittings that facilitate connections between pipes and tanks or other pipes. They are designed to be installed both on the inside and outside of vessels, tanks, and pipes. Think of them as puzzle pieces that ensure a snug and secure fit, allowing for the efficient flow of liquids and gases.

Types of Studding Outlet Flanges

Studding Outlet Flanges come in several distinct types, each tailored for specific purposes:

• Flat Bottom Type: The most commonly used type, featuring a flat bottom suitable for a wide range of applications.
• Shell Mount Type: Designed for external use, these flanges provide a secure connection on the outside of vessels or pipes.
• Head Mount Type: Tailored for attachment to the top of vessels or tanks, these flanges offer efficient fluid transfer from the top.
• Elbow Type: These flanges are used in piping systems with bends or elbows, ensuring smooth flow around curves.

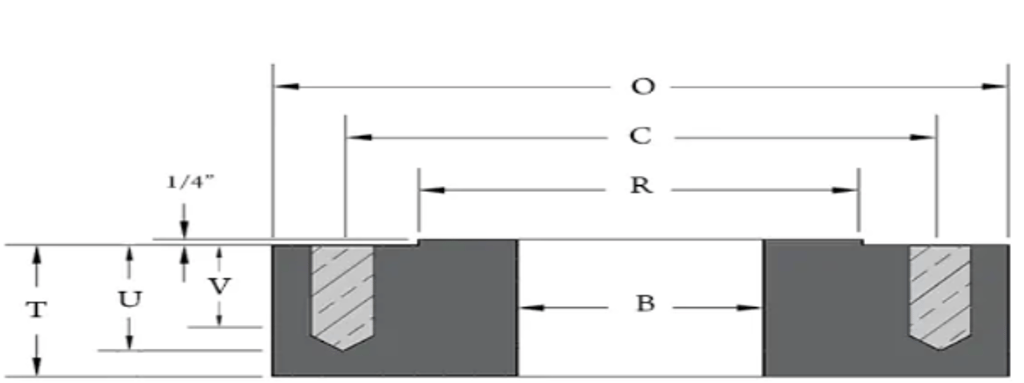

Image source: Texas Flange

Size and Pressure Range

Studding Outlet Flanges are available in various sizes, spanning from smaller sizes like 1/2 inch to larger ones like 24 inches. This extensive range ensures suitability for both small-scale and large-scale applications. Additionally, they are offered in various pressure ratings, such as 150# to 2500#, to match specific pressure requirements.

Materials Used

Studding Outlet Flanges can be manufactured using a diverse range of materials, including:

• Carbon Steel
• Chrome Alloys
• Stainless Steel
• Aluminum
• Hastalloy
• Inconel
• Incolloy
• Monel
• Copper
• Duplex
• Titanium

The choice of material depends on project specifications, such as corrosion resistance, temperature tolerance, and pressure handling capabilities.

Applications

Studding Outlet Flanges find applications in various industries and scenarios, including:

• Petrochemical Industry: They are used to connect pipes in refineries and chemical plants, ensuring the safe transfer of chemicals and petroleum products.
• Water Treatment Facilities: Studding Outlet Flanges play a role in water treatment plants, connecting pipes for the purification and distribution of clean water.
• Oil and Gas Sector: In the oil and gas industry, these flanges are essential for connecting pipelines that transport crude oil and natural gas.
• Manufacturing and Fabrication: Studding Outlet Flanges are used in manufacturing processes, where they connect pipes in machinery and equipment.
• Construction: They find applications in construction projects, helping secure pipes in buildings, bridges, and infrastructure.
